Dual Coordinates
Available from version 5.3
The dual coordinates panel displays your current position in two coordinate systems at once, so you can read both formats at a glance. It also shows your GPS signal accuracy.

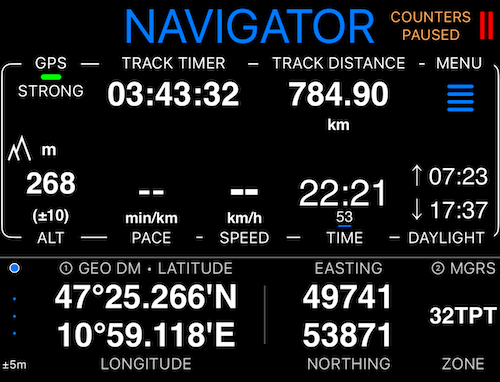

In this example the left side shows Geo DM (degrees and decimal minutes) with latitude and longitude, while the right side shows MGRS with easting, northing, and zone. The GPS accuracy is displayed at the bottom left (±5 m in this case).
To navigate between these bottom panels you can just swipe on them left or right (or up/down when in landscape orientation)
Opening the Options Menu

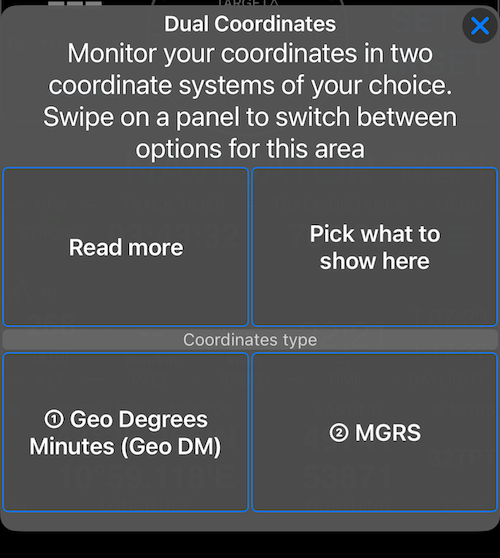

Tap the three-dot menu button on the dual coordinates panel to open the options menu.
From here you can:
- Read more — open this help page
- Pick what to show here — choose which information panels appear in this area
- Coordinates type — tap either coordinate button to change its format
Changing Coordinate Types

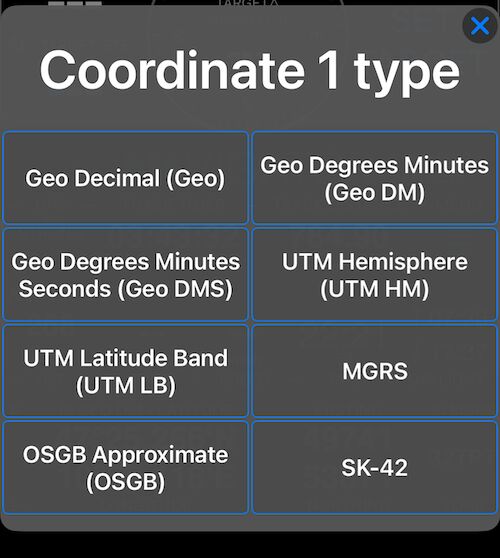

Tap one of the coordinate type buttons (e.g. Geo Degrees Minutes (Geo DM) or MGRS) to open the type picker.
Choose from 8 supported formats:
| Format | Description |
|---|---|
| Geo Decimal (Geo) | Latitude and longitude in decimal degrees (e.g. 47.42110°N) |
| Geo Degrees Minutes (Geo DM) | Degrees and decimal minutes (e.g. 47°25.266’N) |
| Geo Degrees Minutes Seconds (Geo DMS) | Degrees, minutes, and seconds (e.g. 47°25'15.9"N) |
| UTM Hemisphere (UTM HM) | Universal Transverse Mercator with hemisphere indicator |
| UTM Latitude Band (UTM LB) | Universal Transverse Mercator with latitude band letter |
| MGRS | Military Grid Reference System (e.g. 32TPT 49741 53871) |
| OSGB Approximate (OSGB) | Ordnance Survey Great Britain grid reference. For precise OSGB using the OSTN15 transformation (shown as OSGB+), set it up via MENU > Coordinates Converter. |
| SK-42 | Soviet geodetic coordinate system (Pulkovo 1942 datum) |
